product details

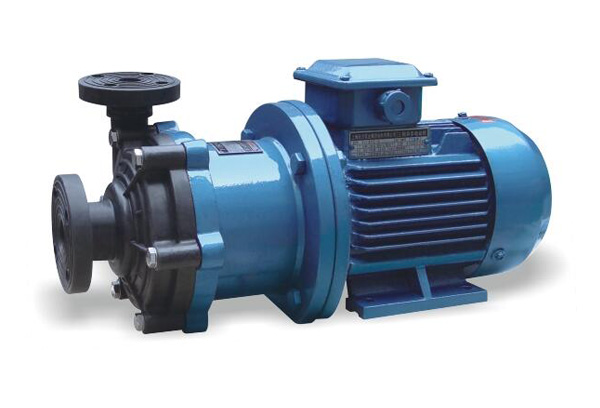

CQF type magnetic drive pump

The magnetic pump uses static seal instead of dynamic seal to make the flow passage parts of the pump in a completely sealed state, which completely solves the problems of running, emitting and dripping of mechanical seal of other pumps. The magnetic pump uses corrosion-resistant, steel jade ceramic magnetic and reinforced polypropylene as the manufacturing materials, so it has good corrosion resistance and can prevent the solid conveying medium from pollution.

021-62586878

Product overview

CQF type magnetic drive pump (hereinafter referred to as magnetic pump) is a new product which uses the working principle of permanent magnetic coupling for centrifugal pump. It has reasonable design, advanced technology, full sealing, no leakage and corrosion resistance. Its performance reaches the advanced level of similar foreign products.

main features

The magnetic pump uses static seal instead of dynamic seal to make the flow passage parts of the pump in a completely sealed state, which completely solves the problems of running, emitting and dripping of mechanical seal of other pumps. The magnetic pump uses corrosion-resistant, steel jade ceramic magnetic and reinforced polypropylene as the manufacturing materials, so it has good corrosion resistance and can prevent the solid conveying medium from pollution.

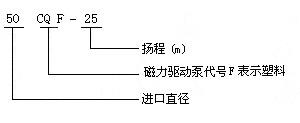

Model meaning


model

caliber

flow

lift

NPSH (m) (NPSH)r

power

speed

電壓


Import

Export

（m3/h）

(m)


(kW)

(r/min)

(V)

10CQF-3

10

8

0.9

3

7.8

0.025

2900

220

14CQF-5

14

10

1.2

5

7

0.12

2900

220/380

I6CQF-8

16

10

1.8

8

6

0.18

2900

220/380

20CQF-12

20

15

3

12

6

0.37

2900

220/380

25CQF-I5

25

20

5.4

15

5

1.1

2900

380

32CQF-15

32

25

6.6

15

6

1.1

2900

380

32CQF-25

32

25

4.8

25

5.5

1.1

2900

380

40CQF-20

40

32

10.8

20

3.5

2.2

2900

380

50CQF-32

50

40

12.5

32

3.5

4

2900

380

65CQF-25

65

50

25

25

3.5

5.5

2900

380

65CQF-32

65

50

25

32

3.5

5.5

2900

380


Magnetic pump has compact structure, beautiful appearance, small volume, low noise, reliable operation and convenient maintenance. It can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, film, photo printing, scientific research institutions, national defense industry and other units to pump acid, alkali, oil, rare precious liquid, poison, volatile liquid, as well as circulating water equipment, matching the rate machine. In particular, easy to leak, flammable, explosive liquid pumping. This pump is more ideal for explosion-proof motor.
